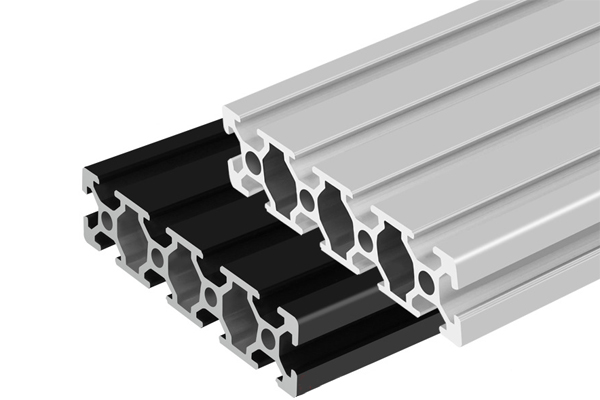

2080 Aluminum Extrusion

√  Tailored cutting, drilling, and assembly to meet your needs.

√  Expert assistance in creating functional, innovative designs.

√  Strict testing and  ISO standard for high-quality products.

√  Fast prototypes to accelerate product development.

√  Timely global delivery with full tracking support.

Your Expert in 2080 Aluminum Extrusion Manufacturing

As a leading manufacturer, we take pride in offering our premium aluminum profiles, which meet the stringent ISO standards. Our profiles are crafted from high-quality national standard 6063 aluminum rods, ensuring optimal strength and durability. Importantly, our manufacturing process does not incorporate any recycled aluminum, guaranteeing the purity and performance of each product.

Our anodized finish exceeds 10 microns, providing exceptional resistance to impacts, moisture, and corrosion, making our profiles suitable for a wide range of applications. Designed for versatility, these aluminum profiles come with multiple assembly options, allowing for efficient installation and disassembly, thereby enhancing operational efficiency.

Utilizing advanced CNC cutting technology, we achieve precise cutting with a maximum tolerance of only ±0.5 mm. Our state-of-the-art CNC center further enhances accuracy, reaching tolerances as tight as ±0.2 mm. This commitment to precision ensures that you receive consistently high-quality products tailored to your specifications. Choose our  aluminum profiles for reliable performance and superior quality in your projects.

Your Reliable Partner in 2080 Aluminum Extrusions

Our 2080 Aluminum Extrusion is a high-quality industrial aluminum profile designed for versatile use across various industries, including machinery, automation, CNC applications, and building. Manufactured from durable T3-T8 6063 aluminum alloy, it offers robust performance, stability, and corrosion resistance, making it ideal for demanding environments.

This 2080 aluminum profile features a V Slot and T Slot size of 6mm, supporting secure, modular assembly in complex setups. It comes in standard colors—black, silver, and grey—but can also be customized to meet specific color requirements using RAL codes. Surface treatments are available to suit different needs, including mill finish, anodizing, electroplating, powder coating, sandblasting, and PVDF coatings.

We also offer extensive deep processing options, such as cutting to specific lengths, drilling holes, mounting bracket installations, and adding flanged side panels. Tailor this profile to your precise requirements for efficient assembly in industrial and automated applications.

T Slot 2020 Aluminum Extrusion Profile

Specification:

Product Code: W-6-20×20
Slot Width: 6.2 mm
Weight: 0.50 kg/m
Moment of Inertia: Ix: 0.72 cm⁴, Iy: 0.72 cm⁴
Section Modulus: Zx: 0.72 cm³, Zy: 0.72 cm³
Cross-Sectional Area: 2.08 cm²
Yield Strength: 215 MPa

T Slot 2040 Aluminum Extrusion Profile

Specification:

Product Code: W-6-20×40
Slot Width: 6.2 mm
Weight: 0.90 kg/m
Moment of Inertia: Ix: 4.64 cm⁴, Iy: 1.42 cm⁴
Section Modulus: Zx: 2.32 cm³, Zy: 1.32 cm³
Cross-Sectional Area: 3.26 cm²
Yield Strength: 220 MPa

T Slot 2060 Aluminum Extrusion Profile

Specification:

Product Code: W-6-20×60
Slot Width: 6.2 mm
Weight: 1.29 kg/m
Moment of Inertia: Ix: 14.64 cm⁴, Iy: 1.92 cm⁴
Section Modulus: Zx: 5.36 cm³, Zy: 1.77 cm³
Cross-Sectional Area: 4.52 cm²
Tensile Strength: 240 MPa

T Slot 2080 Aluminum Extrusion Profile

Specification:

Product Code: W-6-20×80
Slot Width: 6.2 mm
Weight: 1.85 kg/m
Moment of Inertia: Ix: 32.29 cm⁴, Iy: 2.39 cm⁴
Section Modulus: Zx: 8.07 cm³, Zy: 2.39 cm³
Cross-Sectional Area: 6.18 cm²
Yield Strength: 250 MPa

Frequently asked question you may ask:

1. What customization options are offered?
   We provide deep processing services like cutting to size, drilling holes, adding mounting brackets, and incorporating flanged side panels, allowing you to tailor the profile for your application.
2. What applications is this 2080 aluminum extrusion suitable for?
   This extrusion is ideal for a variety of uses, including industrial machinery, automation components, CNC frameworks, and structural building applications. It’s designed to meet the demands of plastic processing and other industrial setups.
3. Is this aluminum extrusion CE certified?
   Yes, the product meets CE standards, ensuring it complies with European safety, health, and environmental protection requirements.
4. Can I order customized lengths for the 2080 profile?
   Absolutely! We can cut the aluminum extrusion to your specific length requirements as part of our deep processing services.
5. Are mounting brackets included with the extrusion?
   Mounting brackets and other accessories are available upon request. We offer options for easy installation and enhanced structural support.
6. What is the lead time for customized orders?
   Lead times depend on the level of customization and order volume. For standard items, we aim for quick delivery, while customizations may require additional time. Please contact us for an estimated timeline based on your needs.
